Model: LRID-300

LRID

Price: $17,100.00


Add to Cart:

9999 Units in Stock

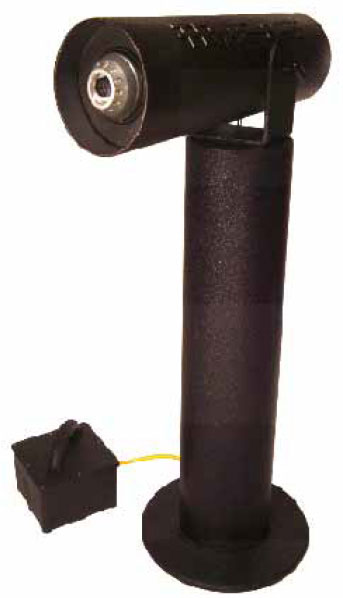

The LRID, Long Range Intruder Detection System, is a mobile or permanent stand off detection system, utilized for surveillance of entry points into a facility or critical infrastructure. Equipped with a long range camera system and infrared night vision,

Components:

• Portable and durable NEMA 4X rated housing for tactical set up
• Long Range Digital Color Camera 1/3" with optional focal length lenses
• Infrared assist for long range detection of movement night time conditions
• Wireless 1.2 Ghz transmission with optional encryption transmitter that provides up to 65,536 encryption combinations, or hard wire connection

Camera:

• Image Sensor: 1/4" CCD Image Sensor
• Image Size: 4.57(H) x 3.9(V) mm
• CCD Effective Pixels: (NTSC): 542(H) x 496(V), (PAL): 542(H) x 586(V)
• Sensitivity: 1lux F1.2, 0 lux (IR ON),4.3,6.0,8.0,12.0mm F1.8 board lens
• Resolution: 380 TV lines
• S/N Ratio: Better than 56dB (AGC OFF)
• White Balance: Auto (3200-10000°K) (Zero color rolling)
• Electronic Shutter: (NTSC):1/60-1/120,000sec. (PAL):1/50-1/120,000sec.
• Scanning System: (NTSC):525 lines, 60 fields/sec. (PAL): 625 lines, 50 fields/sec.
• SYNC System: Internal
• Video Output: 1.0 Vp-p composite video at 75 ohm
• Gamma Correction: 0.45
• Gain Control: AGC
• Storage Temperature: -30°C to 60°C
• Operation Temperature: -20°C to 50°C
• IR LED: 11 unit 840nM LED, DC 12V 180mA, 6000hrs
• IR Distance: 15 Meter, View Angle: 70°, Beam Spread: 30°
• Water Resistance: IP 55
• Power Supply: DC 12V 90mA (+/-10%), AC24V
• Back up Power Supply: DC 8.4V (+/-10%)-DC 6V (+/-10%), about 10hrs
• Ultra hard grade aluminum, with original anodized finish, anti-bullet glass
• Dimensions: f85mm x 143(L) mm, 1.4Kg (3.08lb)

Physical Dimensions:

• Length 10 in
• Width 30 in
• Height 40.5 in
• Weight 32 lbs
• Base 16 in diameter

Video Capture Board:

Board and software provide excellent image display and recording quality through proprietary drivers and compression. Video can be displayed and recorded at 320x240, 640x240 or a true 640x480 non-interlaced resolution, which eliminates the 'ghost effect' in motion video seen with many other systems at 640x480.

Video is compressed for recording by MJPEG or HM (MPEG4-like) compression: HM is proprietary compression technology, designed specifically for CCTV applications. It provides high video quality and yet saves a great deal of disk space through superior compression. CPU acceleration instructions also help the system gain real-time performance.

Instantly sends out notifications when there is an abnormal situation or intrusion. There are many ways to notify an event:
1. Send a voice message to a desk phone or a cell phone.
2. Send a text message to a fax or an e-mail address.
3. Sound an event alarm.
4. Flash an event message on the split screen.
5. Display the event camera in full screen.
6. Trigger traditional alarm devices.
7. Send event reports daily, weekly or monthly by email.

Advanced Motion Detection and Tracking - Moving targets are automatically detected and tracked by a tracking block. This system is sensitive to moving targets in bad lighting environments, and not sensitive to camera shake and the auto-panning of PTZ security cameras.

CCTV devices can be integrated into this system. Through an RS485/RS232 converter, PTZ cameras can be remote controlled for panning, tilting, and zooming. Via I/O ports or an I/O box (depending on board model), the video capture board can receive signals from traditional sensor devices to start recording. Motion based recording can be used to trigger external devices such as lights, switchers, gates, and other traditional alarm devices.

Recording Playback - Search recording log files by date, time, single camera or all cameras. Also search by recording type – motion detection, smart saving, alarm input or time lapse. Play back in quad, 9 or 16 camera displays and switch to single camera full screen (and back again) with a mouse click. Speed up to 16X or slow down to 1/8 speed. Increment backwards and forwards by one frame.

Multiple Recording Methods - Video can be recorded continuously, continuously with Smart Saving, On Motion, On Alarm, by time-lapse or by schedule. Different cameras can have recording methods set independently.
